Soyal AR-721H

เครื่องทาบบัตรหรือกดรหัส AR-721H AR-757H AR-727H AR-747H

เครื่องอ่านบัตรด้านใน AR-721U Program Time Attendance AR-701CM

Soyal AR-721H

www.digital999.com

เครื่องทาบบัตรเข้าออกประตู มีผู้ใช้มากที่สุด คุณภาพดี ทนทาน เหมาะสำหรับ สำนักงาน หอพัก อพาร์ทเมนท์,

Soyal-AR721H Stand-alone Controller/Networking Reader

สถานที่เหมาะสำหรับการติดตั้ง

1.ประตูทางเข้า-ออก สำนักงาน บริษัท ร้านค้า

2.ประตูห้องที่สำคัญ เช่น ห้องเก็บพัสดุ ห้องบัญชีการเงิน ห้องผู้บริหาร

ห้องเก็บเครื่องมือและของมีค่า ห้องศูนย์ข้อมูล

3.ประตูทางเข้า หอพัก อพาร์ทเมนท์ คอนโด โรงแรม

4..สถานที่อื่นฯที่ไม่อนุญาตให้บุคคลภายนอกเข้า

Model
AR-721H
RF Frequency
125KHz
13.56MHz
Compliance(Optional)
  ISO14443A
  ISO15693
  ISO14443A/B+15693
Power Consumption
12VDC/ 100mA <3W
Reading Range
10-18 cm 3-8 cm
Voltage
9-16VDC
Communication Interface
RS-485
Baud Rate
9600 bps(N,8,1)
Operation Temperature
-20C / +75C
DI
Egres Button / Door Sensor
Relay output
Door Relay
Transistor Output
Card Present/ Duress
Door relay Time
0-600 sec
Alarm Relay Time
0-600 sec
Tamper Resist. Switch
Limit Switch (Form C)
Aux. WG Port
WG 26/34, ABA-II
Serial out
TTL(4800 bps,N, 8, 1) shared with alarm Output
Indicator
1 bi-color LED and 1 beeper
Real Time Clock
YES
Color
Gray / Silver
Dimension (mm)
114L*78W*28H
Weight
100+/- 10 g
Housing Material
ABS

Features:

-12 numeric keypad, 1 bicolor LED (green and red) and buzzer indicator.
-Bell output (Optional)
-Support software(701 Server 6.22 & 701 Client Ver6.28)
-Unlimited Site Code
-11 sets of Time Zone
-Different time zone for each user
-Up to 120 holiday that cab be set in a year starting from the editing date.
-keypad will be locked for 30 seconds while continuous error operation.
-Built-in watchdog to prevent the system halting.
-Support door relay Auto-relock Function.
-One RS-485 Port supported for networking (via controller or directly).
-Built-in a reader and an external reader port for exit or anti-pass-back junction.
-Support with keypad locks immd & all cards entrance allowance before cards editing finished.
-Control mode, card capacity and card type assignable by user directly.
-Built-in a proximity reader, a external wiegand reader port and IC card reader (optional).
-Auto-discriminating between stand-along & networking system, AR-721H could connect with controller with controller AR-716Ei to have multi-door anti-pass back.
-Alarm function is available (tamper, Force entrance, Door open too long).
-Door unlock time setting , latched-on/latched-off or momentary 0.1-600 seconds.
-Press " * "+"#" to lock / unlock keypad.
-Press "0"+"#" for all cards entrance allowance.
-Providing proximity card flash edit mode for easy & quick setting.
-Integrates any brand, any frequency of Wiegand reader with SOYAL or other access.
-Built-in open door relay, alarm relay and request to exit button input.

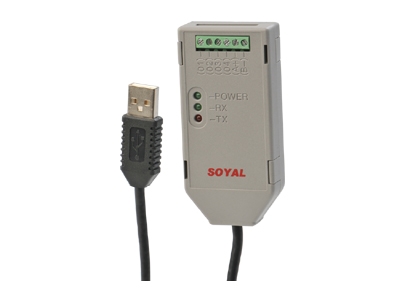

Ar-321CM
AR-723H

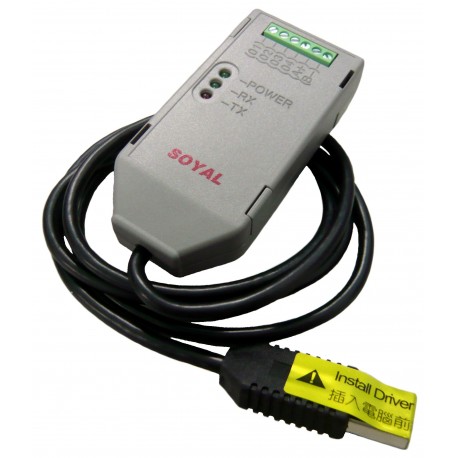

AR-321CM



Interface
USB to RS-485
Power Supply
5 VDC ( Only )
Baud Rate
4800 bps – 11500 bps
Power Consumption
  1 W
Temperature
 -20? to +75?
Active Distance
300m ( RS-485 )
Optical Isolation
3 KV
Electrical Isolation
2500 VRMS
Dimension (mm )
79 ( L )X37 ( W )X16.4 ( H )
Weight ( g )
50



Promotion www.digital999.com

AR-721H Soyal
AR-721H

1 AR-721H Proximity access controller 125 Khz
2 ชุด Power Supply พร้อมแบตเตอรี่สำรองไฟ
1
3 Electromagnetic lock์ 600 ปอนด์
1
4 L&Z Fixcd Bracket for PML 600 ปอนด์
1
5 Proximility Passive key Card (บัตรทาบ)
100
6 สวิทช์ทางออก
1



AR-757H Soyal
AR-757H



1 AR-757H Proximity access controller 125 Khz
2 ชุด Power Supply พร้อมแบตเตอรี่สำรองไฟ
1
3 Electromagnetic lock์ 600 ปอนด์
1
4 L&Z Fixcd Bracket for PML 600 ปอนด์
1
5 Proximility Passive key Card (บัตรทาบ)
100
6 สวิทช์ทางออก
1



AR-727H Soyal
AR-727H



1 AR-727H Proximity access controller 125 Khz / Mifare
2 ชุด Power Supply พร้อมแบตเตอรี่สำรองไฟ
1
3 Electromagnetic lock์ 600 ปอนด์
1
4 L&Z Fixcd Bracket for PML 600 ปอนด์
1
5 Proximility Passive key Card (บัตรทาบ) 125 KHz
100
6 สวิทช์ทางออก
1



1 AR-727H Proximity access controller 125 Khz / Mifare
2 ชุด Power Supply พร้อมแบตเตอรี่สำรองไฟ
1
3 Electromagnetic lock์ 600 ปอนด์
1
4 L&Z Fixcd Bracket for PML 600 ปอนด์
1
5 Proximility Passive key Card (บัตรทาบ) Mifare
100
6 สวิทช์ทางออก
1



AR-725H THAI
AR-725H



1 AR-725H Proximity access controller 125 Khz
2 ชุด Power Supply พร้อมแบตเตอรี่สำรองไฟ
1
3 Electromagnetic lock์ 600 ปอนด์
1
4 L&Z Fixcd Bracket for PML 600 ปอนด์
1
5 Proximility Passive key Card (บัตรทาบ)
100
6 สวิทช์ทางออก
1



ติดต่อเรา



081-4552234

ID LINE :mddigital999digitalthai



081-3545999

ID LINE :mddigital999mddigital999



081-9390211

ID LINE :mddigital999digital999



Email : mddigital999@gmail.com

---------------------------------------------------------------------------------------------------------------------

ES84022L Exit Steel

ES84022l

          ES84022L สวิทช์สแตนเลส (อย่างดี) มีไฟ
Stainless Steel Button with Light


Parameter                    Description

Dimension                 115(L)x40(w)x38(H) mm
Standard Structure      Stainless Steel Panel, Steel Button With Blue Light
Panel Material             304 Stainless Steel Wire Drawing Finished
Current                      3A@36VDC Max
Output Contact           NO/NC/Light
Mechanical Life           100,000 tested
Operating Temperature           -10 C-55C (14 F-131 F
Operating Humidity            0-95% (Non-Condensing)
Weight                          80 g

---------------------------------------------------------------------------------------------------------------------

Remote Door/Gate Controller.รีโมทไร้สายประตูคีย์การ์ด สะดวกรวดเร็วไม่ต้องเดินสายไม่ต้องเดินมากด Exit Switch

Remote Control Access Control

Remote Control



OPTION SOYAL AR-721H

AR-721U

AR-721U

AR-701CM
1 AR-701CM RS-232/RS-485 Isolated Converter เชื่อมต่อกับคอมพิวเตอร์
2 AR-721U เครื่องอ่านบัตรด้านใน Prox Out Put



บัตรทาบบัตรพวงกุญแจบัตรพวงกุญแจบัตรพวงกุญแจบัตรพวงกุญแจบัตรพวงกุญแจบัตรพวงกุญแจบัตรพวงกุญแจ
บัตรทาบ

---------------------------------------------------------------------------------------------------------------------

Soyal Access Control System

AR-721H
AR-757H
AR-725H
AR-727H
AR-721H
AR-757H
AR-725H
AR-727H



AR-331 Soyal
AR-331



AR-888 Soyal
AR-888



AR-837ES Soyal

AR-837ES



AR-837EF Soyal

AR-837EF



AR-401RO16 Soyal
Life Controller



AR-321CM Soyal

AR-321CM



----------------------------------------------------------------------------------------------------

KX-TES824
KX-NS300 IP PBX Panasonic
KX-TES824
KX-NS300

PABX ตู้สาขาโทรศัพท์

Panasonic Digital PABX
PHONIK DIGITAL PABX
NEC PABX SL1000



โทรศัพท์ Single Line เครื่องทาบบัตร Access Control

โทรศัพท์ Single Line
Access Control_thai

---------------------------------------------------------------------------------------------------------------------

วีดีโออินเตอร์คอมไร้สาย Panasonic
วีดีโออินเตอร์คอม

วีดีโออินเตอร์คอม Panasonic

---------------------------------------------------------------------------------------------------------------------

DSC IMPASSAWS-490PWS-4945WS-4939

ระบบแจ้งเหตุผู้บุกรุก รุ่นอิมพาสซ่า จากประเทศ CANADA ได้รับมาตรฐาน CE



คีย์แท็กประหยัดไฟ

ECS BOX
