Digital Card DVR-1016 1-16CH 400f/s |
เครื่องบันทึกภาพแบบการ์ดต่อคอมพิวเตอร์ Digital Card CCTV
1-16ch Real-time monitoring (Display&Record) MPEG4
Recrding rate 480 fps (NTSC) 400 fts(PAL)
Record Mode: Manual/Timer/Motion/Senser/Pre Alarm
Hight -speed remote Video transmission (PSTN,ISDN,&LAN network)

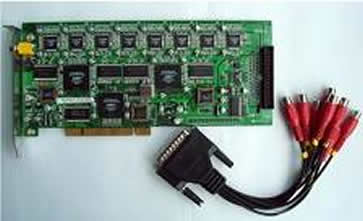

DVR-1016 16 Channel DSS card 400 f/s
Specification:
Compression format
MPEG4 hardware compression
Display and record resolution 352*288 720*576
1-16 channels video input 480f/s per card. Max 1 card.
1-8 channels audio input
1 channel switch analog signal output
100-150M/h of MPEG4, 400-500M/h of D1 resolution
Alarm control
16 channels alarm input and output of built-in alarm card.
Automatic record when alarm start up
Can control automatic record time when alarm start up.
Support motion detection and alarm area settable
Automatic record when motion detection start up.
P/T/Z control
RS232/485 communication interface built-in alarm card.
Support kinds of protocols
Support speed dome and matrix controller
Remote control
Support transmit the video signal through LAN, PSTN, ADSL, ISDN, etc.
Support remote replay Playback record files at remote side.
Support P/T/Z control at remote side.
Support IE browse. Built-in web server
Function
1-16 channels real time record in MPEG4/D1 format
Software decode when playback
Selectable schedule record, manual record, motion detect start record, alarm start record.
Record frames settable
Record files keep at local hard disk, also support moveable hard disk, CDR/W to keep the record files
Search based data, event and channel. Diff speed F.FW and F.FB
Support frame capture and electronics zoom in/out
Support Electronics map and watermark
Built-in Watchdog
-----------------------------------------------------------------------------------------------------------------------------------
Hardware requirement:
CPU: P4 1.6GHz or higher
Memory: 256M RAM
HardDisk: 80G(min)
O/S: Win98/2000 /XP
VGA Card: ATI Radeon 9000 64M or higher
Motherboard: Based on Intel 815/845 chipset or higher.
Resolution: 1024x768 ,32 bit true colour,75Hz refresh frequency.
Windows Directx8.0 or above
-----------------------------------------------------------------------------------------------------------------------------------
