SPECIFICATION

Model

DG1648

Video System

NTSC / PAL (auto switchable)

Video Compression Format

MPEG4

Video Input
(Composite video signal 1 Vp-p 75ohm BNC)

16 Channels

Video Loop Output
(Composite video signal 1 Vp-p 75ohm BNC)

16 Channels

Video Output

Main Monitor Output: Composite video signal 1 Vp-p 75 ohm BNC;
Call Monitor Output: Composite video signal 1 Vp-p 75 ohm BNC

Maximum Recording Rate (Frame)

720x480 pixels with 120 IPS <NTSC> / 720x576 pixels with 100 IPS <PAL>

Maximum Recording Rate (Field)

720x240 pixels with 240 IPS <NTSC> / 720x288 pixels with 200 IPS <PAL>

Maximum Recording Rate (CIF)

352x240 pixels with 480 IPS <NTSC> / 352x288 pixels with 400 IPS <PAL>

Adjustable Recording Speed (Frame)

120, 60, 30, 15 IPS <NTSC> / 100, 50, 25, 12 IPS <PAL>

Adjustable Recording Speed Field)

240, 120, 60, 30 IPS <NTSC> / 200, 100, 50, 25 IPS <PAL>

Adjustable Recording Speed (CIF)

480, 240, 120, 60 IPS <NTSC> / 400, 200, 100, 50 IPS <PAL>

Multilingual OSD

YES

Image Quality Setting

Best, High, Normal, and Basic

Hard Disk Storage
(IDE type, ATA66) (Over 500GB)

Accommodate 3 HDDs*, or 2 HDDs plus independent disk array*
* HDDs and disk arrays are optional.

HDD Quick Cleaning

Quick clean up the “index system” of the recorded files (750GB under 2 seconds)

Recording Mode

Manual / Timer / Motion / Alarm / Remote

Watermark

YES

Refresh Rate

480 IPS for NTSC / 400 IPS for PAL

Multiplex Operation

Live display, record, playback, backup, and network operations

Audio I/O

4 audio inputs, 2 audio outputs (Mono)

Mobile Surveillance

YES

R.E.T.R.
(Remote Event Trigger Recording)

YES

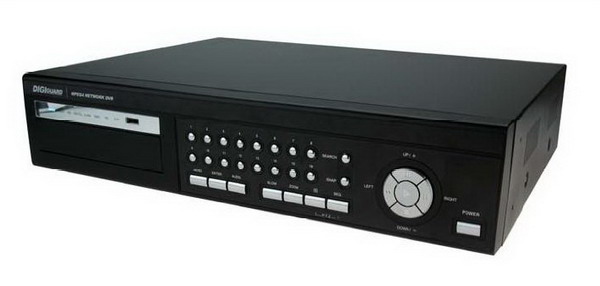

MPEG-4 DVR (16CH)

- Features

-MPEG-4 DVR Technology
- MPEG-4 Compression format providing crystal clear images with real time performance
- MPEG-4 network transmitting format for faster transmission and clearer images via network
- Graphical OSD Interface
-Graphical OSD Interface for easier operation
-Support Mobile Surveillance
- Support Mobile Surveillance via mobile phone
- Improved CIF Image Quality and Performance
- The CIF image quality is highly improved for more clear and detailed image
- Huge Storage Capacity (Up to 1.5 TB storage capacity)
-Support up to 3 HDD accommodation, or 2 HDD accommodation + independent disk array
- Long-Recording Hours
- Backup Function
-Support USB 2.0 flash drive, network & DVD-RW drive backup
- Remote Surveillance
- Support remote surveillance up to 5 users simultaneously with licensed software AP and IE browser
- Multiplex Operation
- Allow live display, record, playback, backup, and network operations at the same time
- Intelligent Motion Trigger Recording
- R.E.T.R. (Remote Event Trigger Recording)
- With the advanced functions of motion detection, scheduled motion detection recording (4 different adjustable factors
for motion detection sensitivity) and quick search, customized security environments are achieved
-Alarm trigger recording will send alerts with images to designated e-mails and the FTP address
- Support pre-alarm recording (8MB)
-Covert Recording
- A mask replaces the live image with a blank screen and the monitor shows nothing, but the recording is still on
- A/V Support
- Support 4 audio-in, 2 audio-out to record sounds
- Support VGA output to monitor (optional)
- Free Upgrade to Advanced Functions
- Allow you to upgrade DVR functions without any charges
- General
- Support multi-language OSD
- Support IR remote control
- System auto recovery after power reconnected
- Support PTZ camera operations
- Support daylight saving function
- Support manual / timer / motion / alarm / network recording
- Ensure the authentication of recorded images with Watermark function
- Support TCP/IP, PPPoE, DHCP and DDNS network connection
