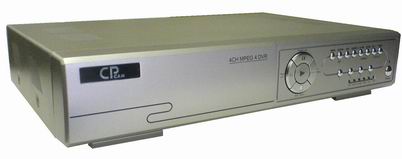

DVR 4CH CPD-560 เมนูภาษาไทย
MODEL |
CPD560 |
MPEG4/MJPEG DVR Technology |
Compression format providing crystal clear images with real time performance. |
Multiples |
Allows live display, record, playback, backup and network operation at the same time. |
Long-Recording Hours : |
500 GB HDD can record more than 170 days.( 4CH, CIF Best Quality, 60IPS) |
Backup Function : |
Support network remote recording & backup |
Remote Surveillance : |
Remote surveillance with the licensed software AP and IE browser Web surveillance supports 5 users simultaneously |
Intelligent Motion Trigger Recording : |
With advanced settings fro motion detection, scheduled motion detection recording ( 4 different adjustable factors for the motion detection sensitivity) and convenient search function, customized security environment is achieved. Alarm triggered recording will send alerts with images to the designated e-mails and FTP address Support Pre-alarm recording (8MB) |
Covert Recording : |
A mask replaces the live image with a blank screen, and the monitor shows nothing but recording is still on. |
A/V Support : |
Support 1 audio-in, 1 audio-out to record sounds Support VGA CONVERTER (optional) |
General : |
Support multi-language OSD |
|
System auto recovery after power reconnected |
|
Support daylight-saving function |
|
Support manual / timer / motion / alarm / remote recording functions |
|
Watermark function ensures authentication of the recorded images |
|
Support TCP/IP, PPPoE, DHCP and DDNS network connection |
------------------------------------------------------------------------------------------------------------------------
Specification |
CPD-560 |
Video System |
NTSC / PAL (switchable) |
Video Compression Format |
Frame: MJPEG ; CIF : MPEG4 |
Video Input |
4 Channeis. Composite video signal 1 Vp-p 75 BNC |
Video Loop Out |
4 Channeis. Composite video signal 1 Vp-p 75 BNC |
Video Output |
Main Moniter Output: Composite video signal 1 Vp-p 75 BNC |
Maximum Recording Rate |
Frame: 720 480 pixels with 30 IPS <NTSC> / 720 576 pixels with 25 IPS <PAL> |
Adjustable Recording Speed |
Frame: 30, 15, 7, 3 IPS <NTSC> / 25, 12, 6, 3 IPS <PAL> |
Image Quality Setting |
Best, High, Normal and Basic |
Hard Disk Storage |
IDE type, ATA66, supported HDD 1 , support HDD capacity over 400 GB |
HDD Quick Cleaning |
Quick clean up the index system of the recorded files. 250 GB under 2 seconds |
Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
Refresh Rate |
120 IPS for NTSC / 100 IPS for PAL |
Audio I/O |
1 audio input, 1 audio output (Mono) |
Motion Detection Area |
16 12 grids per camera for all channels |
Motion Detect Sensitivity |
4 adjustable variables with precise calculation for motion detection |
Pre-alarm Recording |
Yes (8MB) |
Backup Device |
Network remote backup |
Web Transmitting / Compression Format |
Motion JPEG |
Ethernet |
10/100 Base-T. Support remote control and live view via Ethernet. |
Web Interface |
Support licensed software AP and IE browser |
Remote Alarm Notification |
E-mail images, and upload images to FTP sites spercific account |
Net work Connection |
Support TCP/IP, PPPoE, DHCP and DDNS function |
PTZ control |
Support PELCO-D protocol |
Dwell Time (Sequential Channel Switch) |
Programmable with adjustable dwell time |
Alarm I/O |
4 inputs, 1 output |
Digital Zoom |
2X digital Zoom (live mode) |
Key Lock |
Yes |
Video Loss Detection |
Yes |
Camera Title |
Support up to 6 letters |
Video Adjustable |
Hue / Color/ Contrast/ Brightness |
Date Display Format |
YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off |
Power Source |
DC 19V |
Power Consumption |
42W |
Operating Temperature |
10 40 (50 104 ) |
Dimensions (mm) |
343 mm (W) x 59 mm (H) x 223 mm (D) |
System Recovery |
System auto recovery after power reconnected |
Optional Peripheral |
VGA converter |
------------------------------------------------------------------------------------------------------------------------
