SPECIFICATION |

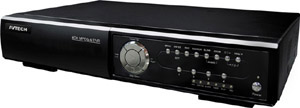

AVC760 |
Video System |
NTSC / PAL (switchable) |
Video Compression Format |
Frame: MJPEG ; CIF: MPEG4 |
Video Input |
4 Channels. Composite video signal 1 Vp-p 75? BNC |
Video Loop Out |
4 Channels. Composite video signal 1 Vp-p 75? BNC |
Video Output |
Main Monitor Output: Composite video signal 1 Vp-p 75? BNC
Call Monitor Output : Composite video signal 1 Vp-p 75? BNC |
Maximum Recording Rate |
Frame: 720 ? 480 pixels with 30 IPS < NTSC > / 720 ? 576 pixels with 25 IPS < PAL >
CIF: 352 ? 240 pixels with 120 IPS < NTSC > / 352 ? 288 pixels with 100 IPS < PAL > |
Adjustable Recording Speed |
Frame: 30, 15, 7, 3 IPS <NTSC> / 25, 12, 6, 3 IPS <PAL>
CIF: 120, 60, 30, 15 IPS <NTSC> / 100, 50, 25, 12 IPS <PAL> |
Image Quality Setting |
Best, high, normal, and basic |
Hard Disk Storage |
IDE type, ATA66, support HDD x 1, support HDD capacity over 400GB |
HDD Quick Cleaning |
Quick clean up the index system of the recorded files. 250GB under 2 seconds |
Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
Refresh Rate |
120 IPS for NTSC / 100 IPS for PAL |
Audio I/O |
1 audio input, 1 audio output (Mono) |
Motion Detection Area |
16 ? 12 grids per camera for all channels |
Motion Detect Sensitivity |
4 adjustable variables with precise calculation for motion detection |
Pre-alarm Recording |
Yes (8MB) |
Backup Device |
Network remote backup / USB flash drive backup |
| Web Transmitting / Compression Format |
Motion JPEG |
Ethernet |
10/100 Base-T. Support remote control and live view via Ethernet |
Web Interface |
Support licensed software AP and IE browser |
Remote Alarm Notification |
E-mail images, and upload images to FTP site's specific account |
Network Connection |
Support TCP/IP, PPPoE, DHCP and DDNS function |
PTZ control |
Support PELCO-D protocol |
IR Transmitter |
YES |
| Dwell Time (Sequential Channel Switch) |
Programmable with adjustable dwell time |
Alarm I/O |
4 inputs, 1 output |
Digital Zoom |
2X digital zoom (live mode) |
Key Lock |
Yes |
Video Loss Detection |
Yes |
Camera Title |
Support up to 6 letters |
Video Adjustable |
Hue / Color / Contrast / Brightness |
Date Display Format |
YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off |
Power Source |
DC 19V |
Power Consumption |
< 42 W |
Operating Temperature |
10?C~ 40?C ( 50?C ~ 104?C ) |
Dimensions (mm) |
345mm (W) x 68.3mm (H) x 225mm (D) |
System Recovery |
System auto recovery after power reconnected |
Optional Peripheral |
VGA converter |
